Nachi Piston Pump

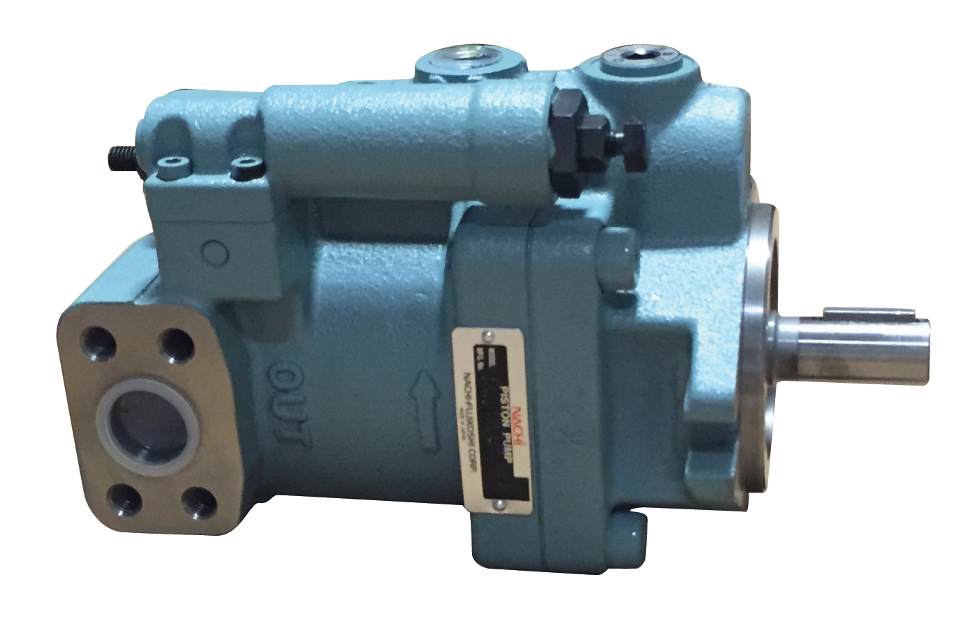

PVS Series Piston Pump
- Half-cylindrical swash plate for low noise and low pulsation
- Rich set of options to enable highly efficient, energy-saving equipment.
| Pump type | Capacity (cm3/rev) | Maximum working pressure (MPa) | Rotational speed (min-1) | Mass (kg) | |
|---|---|---|---|---|---|
| Minimum | Maximum | ||||
| PVS-0B-8 | 8 | 25 | 500 | 2000 | 7.7 |
| PVS-1B-16 | 16.5 | 25 | 500 | 2000 | 10.5 |
| PVS-1B-22 | 22 | 25 | 500 | 2000 | 10.5 |
| PVS-2B-35 | 35 | 25 | 500 | 2000 | 21 |
| PVS-2B-45 | 45 | 25 | 500 | 2000 | 21 |

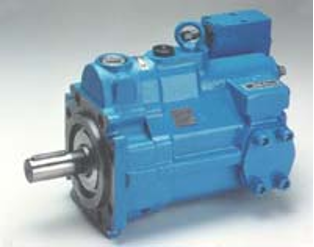

PZS Series Piston Pump
- Half-cylindrical swash plate and 11 pistons for low noise and low pulsation
- Spherical valve plate for high efficiency
- Multiple string option with our IPH series inscribed gear pump.
| Type | Capacity (cm3/rev) | Maximum working pressure (MPa) | Rotational speed (min-1) | Mass (kg) | |
|---|---|---|---|---|---|
| Minimum | Maximum | ||||
| PZS-3B | 70 | 28 | 500 | 1800 | 37 |
| PZS-4B | 100 | 28 | 500 | 1800 | 58 |
| PZS-5B | 130 | 25 | 500 | 1800 | 86 |
| PZS-6B | 180 | 25 | 500 | 1800 | 123 |
| PZS-6B | 220 | 25 | 500 | 1500 | 126 |
